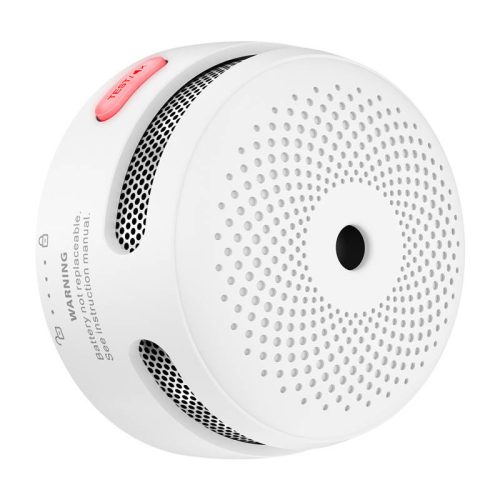

X-Sense XS01 smoke detector
The X-Sense XS01 is a compact but powerful photoelectric smoke detector that provides fast and accurate detection of smoldering materials. Thanks to its photoelectric technology, the device reacts to tiny smoke particles, making it ideal for protecting against smoldering fires typically involving materials such as paper and wood. Its small size (78 mm in diameter and 48 mm in height) and modern design make it fit discreetly into any interior without disturbing its aesthetics. The built-in CR123A lithium battery, which lasts for 10 years, eliminates the need for regular power replacement, making this sensor extremely maintenance-free.
Precise detection and audible alarm
The XS01 sensor uses photoelectric technology, which is more sensitive to smoldering materials, making it ideal for bedrooms, living rooms and other rooms where smoldering fires are likely to occur. The unit is equipped with a loud ≥85 dB alarm that can easily be heard even in large homes. In addition, a red LED indicator flashes quickly to visually indicate the danger.
Easy installation and warning functions
Mounting the sensor is extremely easy with the included mounting bracket and a set of screws and studs. A test/silence function makes it easy to check that the device is working properly, and also temporarily silences the alarm, which is useful in case of false alarms. LEDs provide information on operating status, low battery level and detected faults, so you always know what condition the device is in.
Compact design and wide detection range
The XS01, although compact, is distinguished by its high performance. It provides a wide detection range of 20-40 sqm, making it ideal for protecting large spaces such as living rooms and kitchens. What's more, the housing made of fire-resistant ABS material ensures safety even in extreme fire conditions, withstanding temperatures of up to 300°C.
Included
- Smoke detector x1
- Mounting bracket x1
- Mounting screws x2
- Mounting pins x2
- Instruction manual x1
| Manufacturer | X-Sense |
|---|
| Model | XS01 |
|---|
| Safety standard | EN 14604:2005 + AC:2008 |
|---|
| Sensor type | Photoelectric |
|---|
| Lifetime | 10 years |
|---|
| Power supply | 3 V CR123A lithium battery (not replaceable) |
|---|
| Standby current consumption | < 6 µA |
|---|
| Alarm current | < 60 mA |
|---|
| Alarm sound level | ≥ 85 dB at 3 m |
|---|
| Operating temperature range | 4.4-37.8°C (40-100°F) |
|---|
| Operating humidity | ≤ 85% RH (non-condensing) |
|---|
| Mute time | ≤ 9 minutes |
|---|
| Indicator | Red LED |
|---|
| Dimensions | 78 x 78 x 48 mm |
|---|
| Weight | 91 g |
|---|
