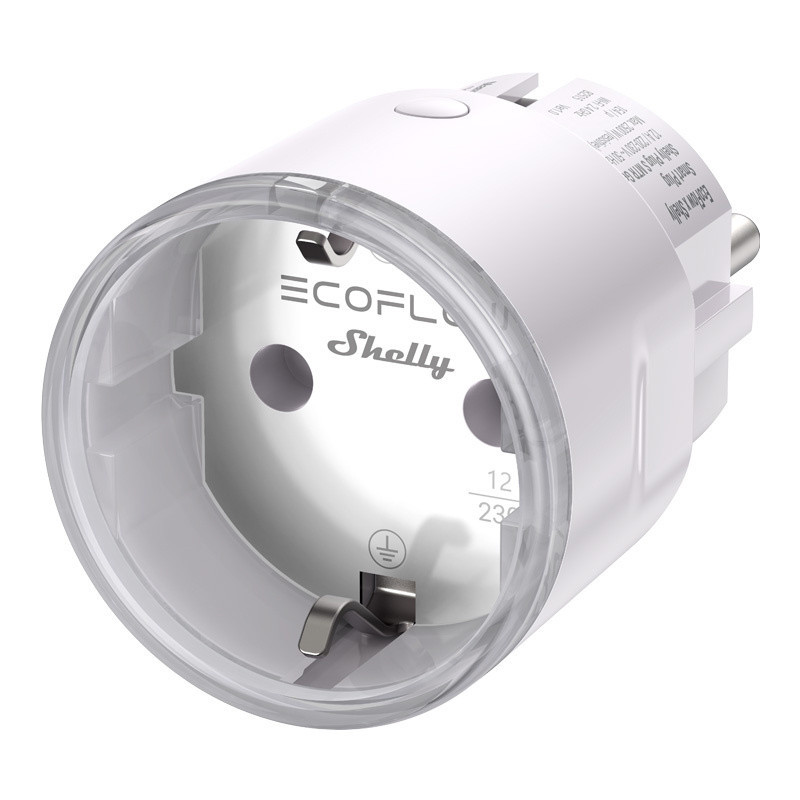

EcoFlow x Shelly Smart Plug (STREAM, PowerStream) smart outlet
The EcoFlow x Shelly Smart Plug is a smart outlet that connects to STREAM and PowerStream systems, allowing you to manage compatible devices in a modern, automated way. Monitor your power consumption, respond to your home's needs and enjoy greater convenience on a daily basis - all with the EcoFlow app.
Technology that makes life easier
You no longer have to get up to turn the power on or off at the appliance of your choice. The EcoFlow x Shelly Smart Plug allows you to control it remotely from the app - via Wi-Fi or Bluetooth, depending on range and network conditions. It's a simple solution that adds convenience on a daily basis.
Energy consumption measurement
Gain real insight into how much electricity your devices are using. The socket is equipped with a voltmeter, ammeter and power and energy consumption meter - you can conveniently check the collected data in the app. A built-in temperature sensor further monitors the operating conditions of the outlet itself.
Colorful LED indicator
An illuminated LED ring indicates the level of current load. Green color indicates low power consumption, yellow - medium, and red - maximum load. The color scheme changes smoothly, allowing you to quickly assess the operating status of the device without the need for an app.
High compatibility
The socket supports 230 V and up to 12 A of current, and is compatible with E and F-type outlets - that is, those you'll find in most European homes. Installation? Just plug it into the contact and pair it with the app - no tools, no complications.
Stable wireless connectivity
With support for Wi-Fi (2.4 GHz) and Bluetooth 4.2, the EcoFlow x Shelly Smart Plug maintains a stable connection to the app within a radius of up to 50 meters outdoors and up to 30 meters indoors. Tailored transmitter power ensures reliable performance in a home environment - without frustration or signal interruption.
Safety first
The housing is made of glow-resistant plastic at temperatures up to 750°C, which minimizes the risk of fire in case of failure. The device operates stably in a temperature range of -20°C to 40°C, requires no additional cooling and is IP20-rated. Built-in overload protection protects both the installation and connected devices.
General
Manufacturer | EcoFlow |
---|
Manufacturer code | EF-OS-SM002-SMP2SHEL |
Physical parameters
Dimensions (H x W x D) | 44 × 44 × 70 mm |
---|
Weight | 60 g |
---|
Compatible sockets | CEE 7/1, CEE 7/3 (type F/Schuko) or CEE 7/5 (type E) |
---|
Compatible plugs | CEE 7/2, CEE 7/4 (type F/Schuko), CEE 7/7, CEE 7/16 (type C) or CEE 7/17 |
---|
Housing material | Plastic |
Environmental parameters
Operating temperature range | FROM -20°C to 40°C |
---|
Humidity | 30% to 70% RH |
---|
Maximum altitude | 2000 m |
---|
Glow test temperature | 750°C |
---|
Degree of contamination | 2 |
---|
Forced cooling required | No |
---|
Degree of protection | IP 20 |
Electrical specifications
Power supply | 220-230 V~, 50/60 Hz |
---|
Power consumption | <1 W |
---|
Rated surge voltage | 2500 V |
Output parameters
Maximum switching voltage | 230 V~ |
---|
Maximum switching current | 12 A |
---|
Mechanical endurance | 10 000 cycles |
---|
Overvoltage category | II |
---|
Operating mode | S1 |
---|
Switch type | Single-pole |
---|
Contact configuration | SPNO (single contact, normally open) |
---|
Type of circuit disconnection | Microbreak |
Sensors and measurements
Internal temperature sensor | Yes |
---|
Voltmeter (AC) | Yes |
---|
Ammeter (AC) | Yes |
---|
Power and energy measurement | Yes |
Wi-Fi connectivity
Protocol | 802.11 b/g/n |
---|
Bandwidth | 2400 - 2473 MHz |
---|
Max. transmit power | <10 dBm |
---|
Range | Up to 50 m outdoors, up to 30 m indoors (depending on conditions) |
Bluetooth connectivity
Protocol | 4.2 |
---|
Bandwidth | 2400 - 2483.5 MHz |
---|
Max. transmit power | <4 dBm |
---|
Range | Up to 30 m outdoors, up to 10 m indoors (depending on conditions) |
